Application Notes
Operating the New Directions Rotary Solenoid remote control gates
There are three ways to operate the standard Rotary Solenoid Gate mechanisms |
|

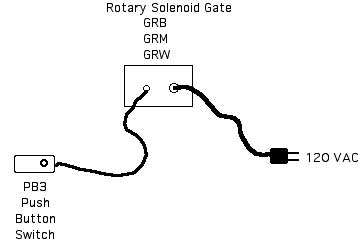

Using the PB-3 push button to directly open the gate. |
![]() |

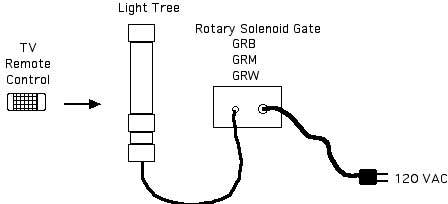

Using the Light Tree to operate the gate. Trigger the light tree with infrared remote control |
![]() |

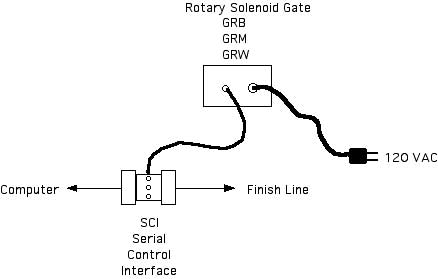

Using the SCI to directly open the gate from your computer. |
![]() |
The Rotary Solenoid with suffix -D, gives more options. | |
Using the PB-3 push button to directly open the gate. |
![]() |

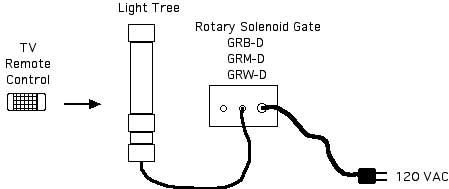

Using the Light Tree to open the gate. | ![]() |

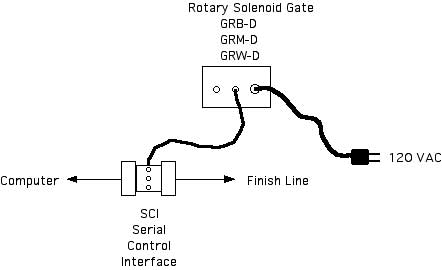

Using the SCI to directly open the gate from your computer. | ![]() |
Using the PB-3 push button to trigger the modified Light Tree, which in turn operates the gate. The Light Tree will also operate from an IR remote control. | ![]() |

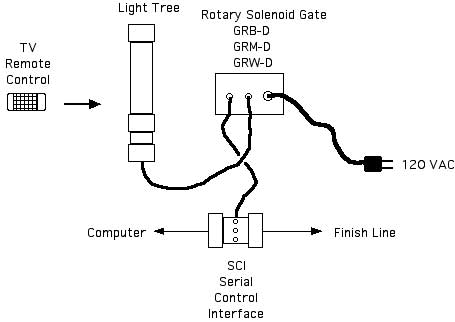

Using the SCI to trigger the modified Light Tree from your computer, which in turn, opens the gate. The Light Tree will also operate from an IR remote control. | ![]() |
