Application Notes
Operating the GLB or GLB-D Linear Solenoid remote control gates for BestTrack
There are three ways to operate the standard GLB BestTrack gate solenoid: |
|

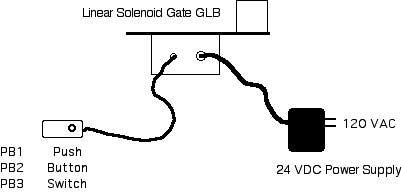

Using the PB-3 push button to directly open the gate. |
![]() |

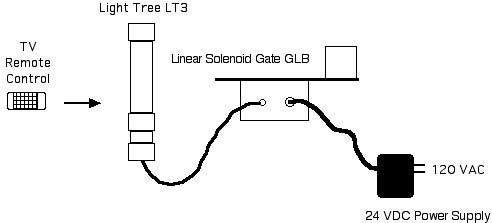

Using the Light Tree to operate the gate. Trigger the light tree with infrared remote control |
![]() |

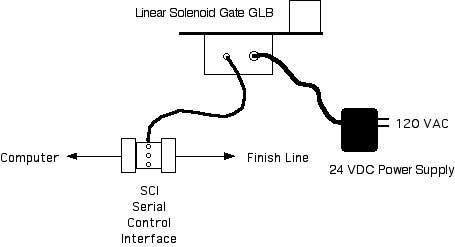

Using the SCI to directly open the gate from your computer. |
![]() |
The GLB with suffix -D, gives more options. | |

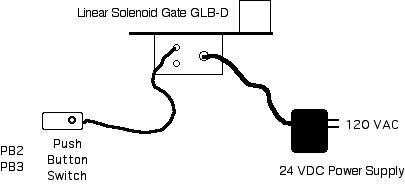

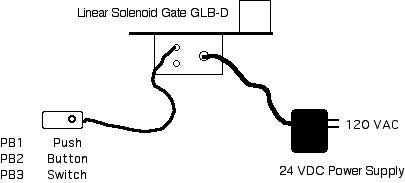

Using the PB-3 push button to directly open the gate. |
![]() |
Using the Light Tree to open the gate. |
![]() |
Using the SCI to directly open the gate from your computer. |
![]() |

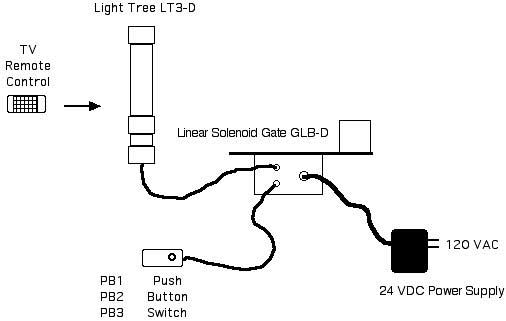

Using the PB-3 push button to trigger the modified Light Tree, Model LT3-D, which in turn operates the gate. The Light Tree will also operate from an IR remote control. |
![]() |

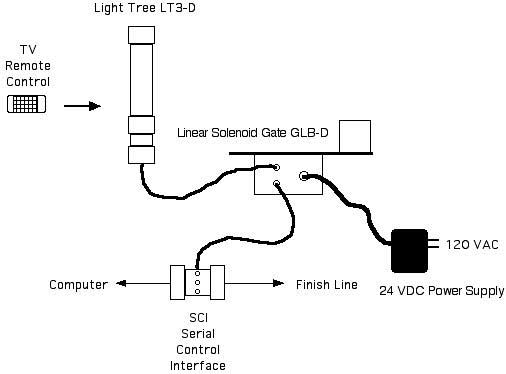

Using the SCI to trigger the modified Light Tree Model LT3-D from your computer, which in turn, opens the gate. The Light Tree will also operate from an IR remote control. |
![]() |
